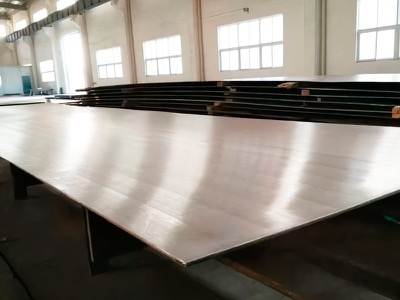

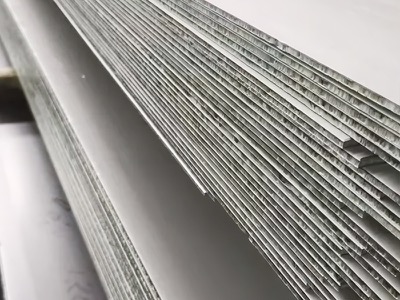

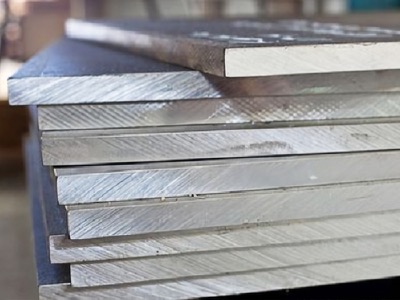

Titanium Clad Plate
Explosion-Bonded & Hot-Rolled Titanium-Steel Composite Clad Plates
Available Grades
Standards
Titanium-steel clad plates combining titanium corrosion resistance with carbon steel structural strength for pressure vessels, heat exchangers, and chemical reactors.
Key Dimensions
| Total Thickness | 8mm - 100mm |
| Ti Cladding | 1mm - 6mm |
| Width | Up to 3000mm |
| Length | Up to 6000mm |
Description
Overview & Engineering Characteristics
BAOTI titanium clad plates are produced by explosion bonding (detonation welding) or hot roll bonding technology. The metallurgical bond between titanium and carbon/stainless steel base provides the corrosion resistance of solid titanium at a fraction of the cost. Clad plates are widely used in the construction of chemical reactors, heat exchangers, electrolyzers, and pressure vessels where both corrosion resistance and structural strength are required.
Manufacturing Process
Available Surface Finishes
Specifications
Chemical Composition (%)
| Element | Gr 1 | Gr 2 | Gr 7 |
|---|---|---|---|
| Ti (Titanium (Clad)) | Balance | Balance | Balance |
| Fe (Iron (max)) | 0.20 | 0.30 | 0.30 |
| O (Oxygen (max)) | 0.18 | 0.25 | 0.25 |
| Pd (Palladium) | - | - | 0.12-0.25 |
Mechanical Properties
Room Temp (20C / 68F)| Property | Gr 1 | Gr 2 | Gr 7 |
|---|---|---|---|
| Bond Shear Strength (MPa) | >140 | >140 | >140 |
| Bend Test (-) | No separation | No separation | No separation |
| Base Metal Tensile (MPa) | Per base spec | Per base spec | Per base spec |
Applications
Chemical Reactors
- Autoclave vessel lining
- Reactor head cladding
- Column tray assemblies
- Agitator vessel walls
Heat Exchangers
- Tubesheet cladding
- Channel box lining
- Condenser waterbox
- Reboiler shells
Electrochemical
- Chlor-alkali electrolyzer cells
- Copper electrowinning cathodes
- PEM electrolyzer end plates
- Anodizing tank liners
Marine & Offshore
- Ship hull protection
- Ballast tank lining
- Offshore platform decking
- Desalination vessels
Quality & Certifications
Every batch undergoes rigorous multi-stage non-destructive and mechanical testing in our ISO 17025 accredited metallurgical laboratory. EN 10204 3.1 Mill Test Certificates (MTR) are supplied with all shipments.
Certifications & Standards
Inspection Procedures
