Titanium Wire
High-Precision Titanium Spool Wire, Welding Rods & 3D Printing Stock
Available Grades
Standards
Ultra-clean titanium wire for TIG/MIG welding (AWS A5.16), additive manufacturing, medical sutures, and eyewear applications.
Key Dimensions
| Diameter | 0.1mm - 8.0mm |

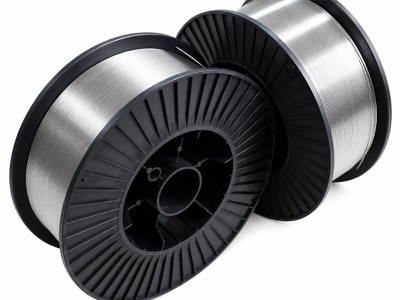

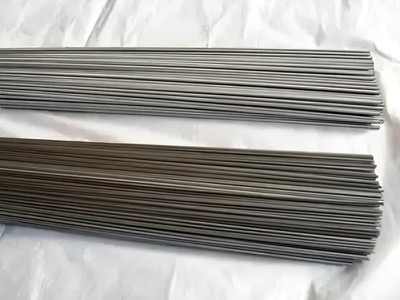

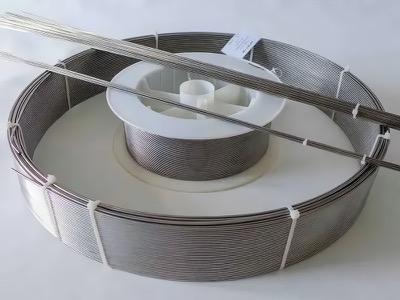

| Form | Spool (5-15kg) or Straight (1000mm) |
| Surface | Chemically cleaned / Bright drawn |
| Custom | Special alloy wire on request |
Description
Overview & Engineering Characteristics
BAOTI titanium wire is produced through multiple cold-drawing passes with intermediate vacuum anneals and diamond die sizing. Our ultra-clean ultrasonic degreasing process ensures zero-contamination surfaces critical for welding and medical applications. Available on precision wound spools, coils, and straight cut lengths. Hydrogen content controlled below 50 ppm for weld integrity.
Manufacturing Process
Available Surface Finishes
Specifications
Chemical Composition (%)
| Element | Gr 1 | Gr 2 | Gr 5 |
|---|---|---|---|
| Ti (Titanium) | Balance | Balance | Balance |
| Al (Aluminum) | - | - | 5.5-6.75 |
| V (Vanadium) | - | - | 3.5-4.5 |
| O (Oxygen (max)) | 0.12 | 0.18 | 0.20 |
| H (Hydrogen (max)) | 0.005 | 0.005 | 0.005 |
Mechanical Properties
Room Temp (20C / 68F)| Property | Gr 1 | Gr 2 | Gr 5 |
|---|---|---|---|
| Tensile Strength (MPa) | 240-350 | 345-500 | 895-1100 |
| Elongation (min) (%) | 25 | 20 | 12 |
Applications
Welding & Fabrication
- TIG/MIG filler wire
- Aerospace pipe welding
- Marine titanium joints
- Exhaust header welding
Medical Devices
- Orthodontic archwires
- Vascular stents
- Surgical staples
- Bone cerclage wire
Additive Manufacturing
- WAAM wire feedstock
- DED 3D printing
- Electron beam additive
- Repair & cladding wire
Consumer Products
- Eyeglass memory frames
- Jewelry wire
- Fishing leaders
- Speaker coil wire
Quality & Certifications
Every batch undergoes rigorous multi-stage non-destructive and mechanical testing in our ISO 17025 accredited metallurgical laboratory. EN 10204 3.1 Mill Test Certificates (MTR) are supplied with all shipments.
Certifications & Standards
Inspection Procedures
Related Products
Titanium Plate & Sheet
High-quality titanium plates and sheets for demanding industrial applications. Offering excellent corrosion resistance, high strength-to-weight ratio, and biocompatibility.
Titanium Bar & Rod
Precision ground and peeled titanium round bars with ultra-tight diameter tolerances (h7-h9) for CNC machining, aerospace fasteners, and medical orthopedic applications.
Titanium Tube & Pipe
Seamless cold-drawn and ERW welded titanium tubes designed for severe corrosive environments, heat exchangers, offshore seawater cooling, and aerospace hydraulic conduits.
Titanium Forgings
Heavy-duty forged titanium components for turbine engines, subsea manifolds, pressure vessels, and aerospace structural applications.
Need Custom Specifications?
Our metallurgical engineers can assist with non-standard dimensions, custom alloys, special heat treatments, and tight tolerance requirements. Send us your drawing or specification sheet.
