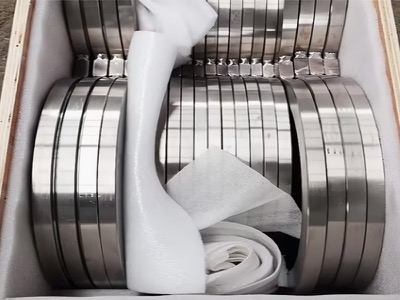

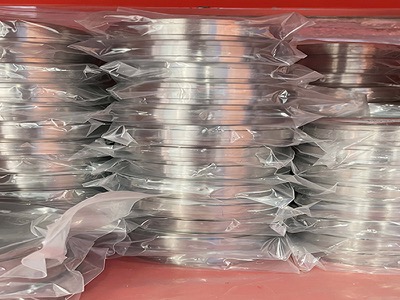

Titanium Forgings
Custom Closed-Die & Free Forged Titanium Rings, Discs, Blocks & Flanges
Available Grades
Standards
Heavy-duty forged titanium components for turbine engines, subsea manifolds, pressure vessels, and aerospace structural applications.
Key Dimensions
| Ring OD | Up to 3500mm |
| Block Size | Up to 1500 x 1500mm |
| Shaft Length | Up to 5000mm |
| Weight | Up to 6000kg single piece |
Description
Overview & Engineering Characteristics
BAOTI operates 10,000-ton hydraulic free-forging presses and seamless ring-rolling mills capable of producing titanium forgings up to 6000kg single piece weight. Our forging process achieves superior grain refinement, high impact resistance, and maximum fatigue life. All forgings undergo solution treatment, aging (STA), and comprehensive non-destructive testing including ultrasonic immersion, die penetrant, and macro-etch grain flow verification.
Manufacturing Process
Available Surface Finishes
Specifications
Chemical Composition (%)
| Element | Gr 2 | Gr 5 | Gr 12 |
|---|---|---|---|
| Ti (Titanium) | Balance | Balance | Balance |
| Al (Aluminum) | - | 5.5-6.75 | - |
| V (Vanadium) | - | 3.5-4.5 | - |
| Fe (Iron (max)) | 0.30 | 0.30 | 0.30 |
| Mo/Ni (Moly / Nickel) | - | - | 0.2-0.4/0.6-0.9 |
Mechanical Properties
Room Temp (20C / 68F)| Property | Gr 2 | Gr 5 | Gr 12 |
|---|---|---|---|
| Tensile Strength (min) (MPa) | 345 | 895 | 485 |
| Yield Strength (min) (MPa) | 275 | 828 | 345 |
| Elongation (min) (%) | 20 | 10 | 18 |
| Charpy V-Notch Impact (J) | 70 | 25 | 45 |
Applications
Turbine & Engine
- Compressor stage discs
- Combustion casing rings
- Fan blisks
- Missile body rings
Offshore & Subsea
- Subsea BOP manifold blocks
- Weld neck flanges (ASME B16.5)
- High-pressure valve bodies
- Riser connectors
Chemical & Power
- Reactor vessel heads
- Centrifuge bowls
- Heat exchanger tubesheets
- Autoclave closures
Defense
- Armored vehicle components
- Naval propeller hubs
- Torpedo housings
- Satellite structural rings
Quality & Certifications
Every batch undergoes rigorous multi-stage non-destructive and mechanical testing in our ISO 17025 accredited metallurgical laboratory. EN 10204 3.1 Mill Test Certificates (MTR) are supplied with all shipments.
Certifications & Standards
Inspection Procedures
Related Products
Titanium Plate & Sheet
High-quality titanium plates and sheets for demanding industrial applications. Offering excellent corrosion resistance, high strength-to-weight ratio, and biocompatibility.
Titanium Bar & Rod
Precision ground and peeled titanium round bars with ultra-tight diameter tolerances (h7-h9) for CNC machining, aerospace fasteners, and medical orthopedic applications.
Titanium Tube & Pipe
Seamless cold-drawn and ERW welded titanium tubes designed for severe corrosive environments, heat exchangers, offshore seawater cooling, and aerospace hydraulic conduits.
Titanium Wire
Ultra-clean titanium wire for TIG/MIG welding (AWS A5.16), additive manufacturing, medical sutures, and eyewear applications.
Need Custom Specifications?
Our metallurgical engineers can assist with non-standard dimensions, custom alloys, special heat treatments, and tight tolerance requirements. Send us your drawing or specification sheet.
