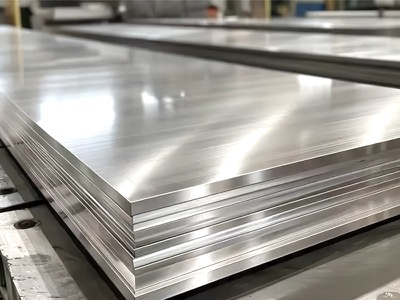

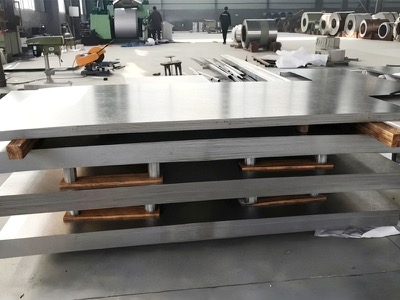

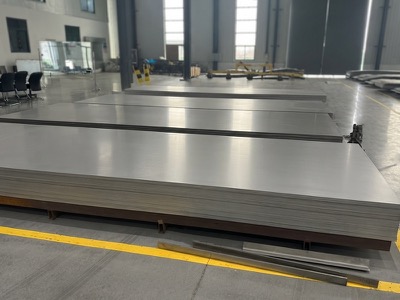

Titanium Plate & Sheet
High-Purity Titanium & Titanium Alloy Sheets, Plates and Strips
Available Grades
Standards
High-quality titanium plates and sheets for demanding industrial applications. Offering excellent corrosion resistance, high strength-to-weight ratio, and biocompatibility.
Key Dimensions
| Thickness | 0.5mm - 100mm |
| Width | 1000mm - 3000mm |
| Length | 2000mm - 6000mm |
| Custom | Waterjet & Shearing Available |
Description
Overview & Engineering Characteristics
BAOTI titanium plates and sheets are manufactured from primary virgin sponge using double or triple Vacuum Arc Remelting (VAR). Our precision rolling lines ensure tight thickness tolerance (as low as +/-0.05mm), superior flatness, and clean uniform surface grain structures suitable for high-stress forming and deep drawing. Available in commercially pure (CP) grades and high-strength alloy grades for aerospace, chemical processing, medical, and marine industries.
Manufacturing Process
Available Surface Finishes
Specifications
Chemical Composition (%)
| Element | Gr 1 | Gr 2 | Gr 5 | Gr 7 |
|---|---|---|---|---|
| Ti (Titanium) | Balance | Balance | Balance | Balance |
| N (Nitrogen (max)) | 0.03 | 0.03 | 0.05 | 0.03 |
| C (Carbon (max)) | 0.08 | 0.08 | 0.08 | 0.08 |
| Fe (Iron (max)) | 0.20 | 0.30 | 0.40 | 0.30 |
| O (Oxygen (max)) | 0.18 | 0.25 | 0.20 | 0.25 |
| Al (Aluminum) | - | - | 5.5-6.75 | - |
| V (Vanadium) | - | - | 3.5-4.5 | - |
| Pd (Palladium) | - | - | - | 0.12-0.25 |
Mechanical Properties
Room Temp (20C / 68F)| Property | Gr 1 | Gr 2 | Gr 5 | Gr 7 |
|---|---|---|---|---|
| Tensile Strength (min) (MPa) | 240 | 345 | 895 | 345 |
| Yield Strength 0.2% (min) (MPa) | 170 | 275 | 828 | 275 |
| Elongation (min) (%) | 24 | 20 | 10 | 20 |
| Hardness (typical) (HB/HRC) | 120 HB | 160 HB | 36 HRC | 160 HB |
| Modulus of Elasticity (GPa) | 103 | 105 | 114 | 105 |
Applications
Aerospace & Defense
- Airframe bulkhead stiffeners
- Gas turbine engine casings
- Rocket propellant tanks
- Wing skin panels
Medical & Dental
- Trauma fixation plates
- Prosthetic hip stems
- Spinal fusion devices
- MRI-safe instruments
Chemical Processing
- Heat exchangers
- Chlor-alkali cells
- Autoclave vessels
- Bleaching tanks
Marine & Power
- Desalination chambers
- Naval propulsion shafts
- Steam turbine blades
- Geothermal condensers
Quality & Certifications
Every batch undergoes rigorous multi-stage non-destructive and mechanical testing in our ISO 17025 accredited metallurgical laboratory. EN 10204 3.1 Mill Test Certificates (MTR) are supplied with all shipments.
Certifications & Standards
Inspection Procedures
