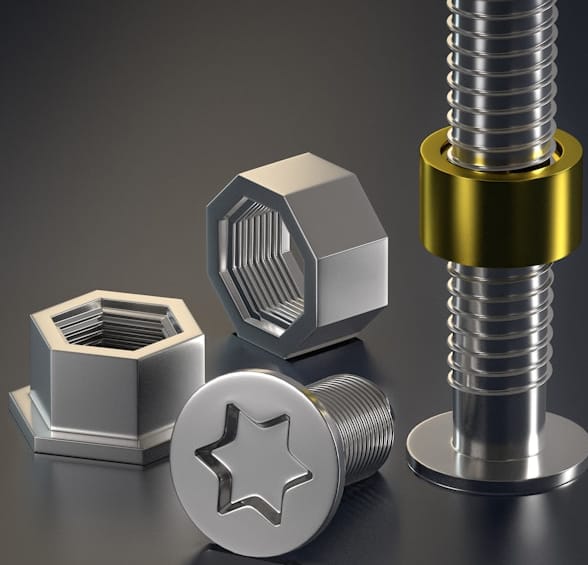

Titanium Fasteners in Aerospace, Marine, and Chemical Processing: Application Case Studies and Specification Guide

Why Titanium Fasteners Are Replacing Steel in Critical Assemblies

A bolted joint is only as reliable as its weakest fastener. In high-performance assemblies — turbine engine casings operating at 350 °C, offshore platform risers submerged in 25 °C seawater for 30 years, or titanium-clad reactor vessels handling boiling hydrochloric acid — a corroded, hydrogen-embrittled, or over-weight steel bolt is not merely a maintenance headache. It is a failure mode that can ground an aircraft, shut down a production platform, or trigger an unplanned chemical plant outage costing hundreds of thousands of dollars per day.

Titanium fasteners eliminate these failure modes at their root. With a density of 4.51 g/cm³ — 43% lighter than A286 superalloy steel and 40% lighter than Inconel 718 — titanium bolts reduce structural weight in airframe and engine assemblies where every gram affects fuel burn. With a passive oxide film that regenerates in milliseconds, titanium resists crevice corrosion, pitting, and stress corrosion cracking in chloride environments where even super-duplex stainless steel eventually fails. And with a coefficient of thermal expansion (8.6 × 10⁻⁶ /°C) closely matching titanium structural members, titanium-on-titanium bolted joints avoid the differential-expansion-induced preload loss that plagues steel fasteners in titanium structures cycling between -55 °C and +315 °C.

This guide examines how three industries — aerospace, marine, and chemical processing — are specifying and deploying titanium fasteners today, with the grade selection data, specification cross-references, and procurement guidance that engineers and buyers need to make informed sourcing decisions.

Grade Selection: Matching the Alloy to the Service Condition

Not every titanium fastener is the same alloy. The mechanical properties, corrosion behavior, and temperature capability of titanium fasteners vary dramatically across grades, and selecting the wrong grade is the single most common specification error in titanium fastener procurement. The following table summarizes the grades most frequently specified for fastener applications, with the key properties that drive selection.

Grade	UNS	Composition	UTS (MPa)	0.2% YS (MPa)	Elongation (%)	Max Service Temp (°C)	Primary Application
Gr.1 CP	R50250	99.5% Ti	≥240	≥170	≥24	300	Chemical process (HCl, wet Cl₂)
Gr.2 CP	R50400	99.2% Ti	≥345	≥275	≥20	300	Marine, desalination, general industrial
Gr.5 (Ti-6Al-4V)	R56400	Ti-6Al-4V	≥895	≥828	≥10	315	Aerospace structural, engine, medical
Gr.5 ELI (Ti-6Al-4V ELI)	R56401	Ti-6Al-4V (low O)	≥860	≥795	≥10	315	Fracture-critical aerospace, cryogenic
Gr.7 (Ti-0.15Pd)	R52400	Ti-0.15Pd	≥345	≥275	≥20	300	Chemical process (reducing acids)
Gr.9 (Ti-3Al-2.5V)	R56320	Ti-3Al-2.5V	≥620	≥483	≥15	315	Hydraulic tubing flanges, motorsport
Gr.12 (Ti-0.3Mo-0.8Ni)	R53400	Ti-0.3Mo-0.8Ni	≥483	≥345	≥18	300	Seawater piping, heat exchangers
Gr.19 (Ti-3Al-8V-6Cr-4Mo-4Zr / Beta-C)	R58640	Ti-3Al-8V-6Cr-4Mo-4Zr	≥1241	≥1172	≥6	290	High-strength aerospace, springs

The dominant fastener grade is Ti-6Al-4V (Grade 5), accounting for approximately 60% of all titanium fasteners produced globally. Its strength-to-weight ratio — 199 kN·m/kg versus 112 kN·m/kg for A286 — makes it the default choice for aerospace applications. However, specifying Grade 5 for a chlorine dioxide bleach plant, where Grade 7's palladium addition provides critical resistance to reducing acid crevice attack, is a costly error that leads to premature fastener replacement.

Application Case Study 1: Aerospace — Engine and Airframe Fasteners

The Problem

A major European airframe manufacturer was experiencing recurring preload relaxation failures in the aft fuselage-to-empennage joint of a wide-body aircraft. The original design specified A286 superalloy bolts (per NAS6703) torqued to 55 N·m, joining Ti-6Al-4V fuselage frames to Ti-6Al-4V vertical tail plane (VTP) fittings. During accelerated fatigue testing at -55 °C to +82 °C thermal cycles simulating cruise-to-ground operations, 12% of the A286 bolts showed measurable preload loss after 20,000 cycles — well within the 60,000-cycle inspection interval.

The root cause was differential thermal expansion. A286 has a CTE of 16.4 × 10⁻⁶ /°C, nearly double that of the Ti-6Al-4V structure (8.6 × 10⁻⁶ /°C). Over thousands of thermal cycles, the steel bolts were effectively shrinking more than the surrounding titanium structure during cold soak, then expanding more during ground operations, progressively reducing clamp load through a ratcheting mechanism.

The Solution

The joint was redesigned using Ti-6Al-4V fasteners per NAS6705 (160 ksi minimum tensile strength). Because the fastener and structure now had matched CTEs, the differential expansion was reduced by over 90%. Fatigue testing of the redesigned joint showed zero preload loss after 120,000 cycles — double the original requirement.

The weight savings were substantial: 1,247 fasteners in the aft fuselage joint, each reduced from 8.0 g (A286) to 4.6 g (Ti-6Al-4V), yielded a net saving of 4.24 kg per aircraft. Over a 30-year service life, that translates to approximately 22,000 liters of fuel saved per aircraft.

Aerospace Fastener Specifications

Specification	Standard	Material	Tensile Strength	Application
NAS6703	National Aerospace Standard	A286 steel	160 ksi	Baseline comparison
NAS6705	National Aerospace Standard	Ti-6Al-4V	160 ksi	Structural airframe
AMS 4967	SAE Aerospace Material Spec	Ti-6Al-4V bar/wire	130 ksi min	Fastener raw material
AMS 4928	SAE Aerospace Material Spec	Ti-6Al-4V bar (annealed)	130 ksi min	Bolt stock
AMS 4965	SAE Aerospace Material Spec	Ti-6Al-4V bar (STA)	160 ksi min	High-strength bolt stock
ASTM F468	ASTM International	Multiple Ti grades	Grade-dependent	General fastener spec
ASTM F467	ASTM International	Multiple Ti grades	Grade-dependent	Nut specification
ISO 5832-3	ISO	Ti-6Al-4V (surgical)	860 MPa min	Medical fasteners

Application Case Study 2: Marine — Offshore Platform and Shipboard Fasteners

The Problem

A North Sea oil and gas operator was spending approximately £2.3 million annually on fastener replacement across a fleet of six production platforms. The original specification called for super-duplex stainless steel (UNS S32750) bolts for seawater-wetted flanges and structural connections in the splash zone. Despite the material's excellent general corrosion resistance, crevice corrosion was developing under bolt heads and within flange gaps where seawater stagnated and oxygen was depleted. The critical pitting resistance equivalent number (PREN) of S32750 is 42.5, theoretically adequate for seawater, but the crevice geometry created local conditions — elevated chloride concentration, reduced pH, oxygen depletion — that exceeded the material's crevice corrosion resistance threshold of approximately 40 °C in natural seawater.

The consequence was not catastrophic failure but chronic maintenance burden: inspection at 3-year intervals revealed 4-8% of splash-zone bolts required replacement at each shutdown, with each subsea-rated bolt costing £85-120 installed, including scaffolding, NDT, and hot work permits.

The Solution

The operator trialed Grade 12 titanium (Ti-0.3Mo-0.8Ni) fasteners per ASTM F468 on two platforms in 2023. Grade 12 was selected over Grade 2 because its molybdenum and nickel additions provide superior crevice corrosion resistance in hot, stagnating seawater — the exact condition that was defeating super-duplex steel. The critical crevice temperature (CCT) for Grade 12 in natural seawater exceeds 270 °C, effectively eliminating crevice corrosion as a failure mode.

After 30 months in service, zero titanium fasteners have required replacement. The operator has approved a fleet-wide conversion program with a projected payback period of 3.8 years, based on elimination of the £2.3M annual replacement cost and reduction in shutdown duration by 2.5 days per platform per turnaround.

Marine Fastener Grade Selection Guide

Service Condition	Recommended Grade	Reason	Specification
Clean seawater, ambient temp	Gr.2 CP	Adequate resistance, lowest cost	ASTM F468 Gr.2
Seawater splash zone	Gr.12	Mo/Ni additions resist crevice attack	ASTM F468 Gr.12
Stagnant seawater, elevated temp	Gr.7	Pd addition for reducing conditions	ASTM F468 Gr.7
Seawater + H₂S (sour service)	Gr.12 or Gr.7	Resistant to sulfide SCC	NACE MR0175
Aluminum structure (cathodic protection)	Gr.2 + isolation	Prevent galvanic couple	ASTM F468 + insulating bushings
Subsea (deepwater, high pressure)	Gr.5 or Gr.19	High strength for compact joint design	ASTM F468 Gr.5

Application Case Study 3: Chemical Processing — Reactor and Heat Exchanger Fasteners

The Problem

A chlor-alkali plant in Southeast Asia was experiencing fastener failure in the brine dechlorination system within 8-14 months of installation. The original design used Hastelloy C-276 bolts (UNS N10276) for the flanged connections on titanium Grade 2 heat exchangers and reactor vessels. While C-276 is highly resistant to the wet chlorine and hydrochloric acid environment, the bolted flange joints were developing galvanic corrosion at the C-276/Ti interface. The potential difference of approximately 150 mV in the brine environment, combined with the large cathode-to-anode area ratio (titanium vessel body acting as cathode, small bolt area as anode), accelerated corrosion of the C-276 fasteners at the bolt-flange interface.

Additionally, the plant was losing an average of 3.2 production days per year to unplanned shutdowns for fastener replacement, with each day of lost chlorine production valued at approximately $45,000.

The Solution

The plant converted all titanium vessel flange bolting to Grade 7 titanium (Ti-0.15Pd) per ASTM F468. Grade 7 was selected specifically because the palladium addition (0.12-0.25 wt%) shifts the corrosion potential in the noble direction, providing resistance to reducing acid conditions (specifically HCl concentrations up to 7% at 70 °C) that would attack commercially pure titanium grades. By matching the fastener material to the vessel material family, the galvanic driving force was eliminated entirely.

After 30 months of operation, the plant has recorded zero unplanned fastener-related shutdowns. The total installed cost of Grade 7 titanium fasteners was 2.1× higher than C-276, but the elimination of galvanic corrosion and the projected 15+ year service life yielded a net present value saving of $280,000 over the first 10-year maintenance cycle.

Chemical Processing Fastener Compatibility Matrix

Process Fluid	Temperature	Titanium Grade	Compatible Vessel Material	Notes
Wet chlorine gas	25-80 °C	Gr.2 or Gr.7	Ti Gr.2	Avoid if moisture <1.5% (pyrophoric risk)
Hydrochloric acid ≤5%	25-60 °C	Gr.7	Ti Gr.7	Pd addition critical
Hydrochloric acid 5-10%	25-40 °C	Gr.7	Ti Gr.7	Verify in actual service medium
Sulfuric acid ≤5%	25-80 °C	Gr.7 or Gr.12	Ti Gr.7	Reducing acid — Pd or Mo/Ni needed
Nitric acid (all conc.)	25-190 °C	Gr.2	Ti Gr.2	Oxidizing acid — CP titanium excels
Sodium hydroxide ≤50%	25-80 °C	Gr.2	Ti Gr.2	Avoid >80 °C (hydrogen absorption)
Chlorine dioxide	25-70 °C	Gr.7	Ti Gr.7	Bleach plant service
Acetic acid	25-120 °C	Gr.2	Ti Gr.2	Excellent resistance

Manufacturing Processes for Titanium Fasteners

Titanium fasteners are manufactured through three primary routes, each suited to different volume and performance requirements. Understanding these processes helps procurement teams evaluate supplier capability and set realistic lead time expectations.

Hot Heading and Cold Heading

High-volume aerospace and industrial fasteners are produced by heading — a forging operation that forms the bolt head from wire or bar stock by upsetting one end in a die cavity. Cold heading (performed at room temperature) is used for commercially pure grades and small-diameter Grade 5 fasteners (typically M6 and below), where the alloy's ductility permits forming without cracking. Hot heading (performed at 700-950 °C for Ti-6Al-4V) is required for larger diameters and higher-strength alloys, where the forming forces would exceed die capacity or cause workpiece cracking at room temperature.

Cold-headed titanium fasteners offer superior surface finish and dimensional consistency, with thread tolerances routinely achieving 6g/6H per ISO 965-1. Hot-headed fasteners require subsequent machining of bearing surfaces and thread rolling, adding cost but enabling production of fasteners up to M36 diameter in Grade 5 and M48 in Grade 19 (Beta-C).

CNC Machining from Bar Stock

For low-volume, large-diameter, or non-standard configurations — custom studs, shoulder bolts, stepped pins, and specialty nuts — CNC machining from bar stock is the dominant production method. Titanium machining demands rigid fixturing, carbide or PCD tooling, high-pressure coolant delivery, and conservative cutting parameters (typically 30-60 m/min surface speed for Ti-6Al-4V, compared to 150-250 m/min for 316L stainless steel).

The material waste inherent in machining (buy-to-fly ratios of 3:1 to 8:1 for complex fastener geometries) makes this process uneconomic for production runs above approximately 500 pieces, where heading becomes cost-competitive despite its higher tooling investment.

Thread Rolling vs. Thread Cutting

Thread rolling — the plastic deformation of the thread form by hardened steel dies — produces threads with superior fatigue life compared to cut threads. The cold working from rolling creates compressive residual stresses at the thread root (the location of maximum stress concentration in a loaded bolt), increasing fatigue strength by 20-40% depending on the thread form and material condition. For this reason, aerospace specifications universally require rolled threads on titanium fasteners: NAS4003, NAS4004, and NAS4006 all mandate thread rolling after heat treatment.

Cut (machined) threads are acceptable for chemical processing and marine fasteners where static loading predominates and fatigue is not the governing failure mode. However, even in these applications, thread rolling is preferred when available, as the improved surface finish (typically Ra 0.4-0.8 μm versus Ra 1.6-3.2 μm for cut threads) reduces the number of crevice corrosion initiation sites at the thread root.

Specification Cross-Reference for Procurement

Engineers and procurement managers frequently need to cross-reference specifications across standards bodies. The following table maps the most commonly specified titanium fastener standards, enabling accurate callout on purchase orders and drawings.

Application	ASTM	AMS	ISO	MIL/NAS	DIN
Bolts, hex head	F468	—	10664	NAS6705	933 (geometry)
Nuts, hex	F467	—	10663	NAS6706	934 (geometry)
Screws, socket head	F468	—	10642	NAS6705	912 (geometry)
Studs	F468	—	10665	—	938 (geometry)
Bar stock, annealed (Gr.5)	B348	4928	5832-3	MIL-T-9047	17851
Bar stock, STA (Gr.5)	B348	4965/4967	5832-3	MIL-T-9047	17851
Wire (for cold heading)	F67/B863	4951/4956	5832-3	—	—
Quality system	—	—	9001 + AS9100D	—	—

Cost Factors and Lifecycle Economics

The procurement cost of a titanium fastener is typically 5-15× higher than an equivalent steel fastener. This price differential is the primary barrier to adoption and the most frequent objection raised by procurement departments. However, a first-cost comparison fundamentally misrepresents the lifecycle economics of titanium fasteners in corrosive or weight-sensitive applications.

Total Cost of Ownership Model

Cost Element	316L SS Bolt (M16×80)	Super-Duplex Bolt (M16×80)	Ti Gr.5 Bolt (M16×80)	Ti Gr.7 Bolt (M16×80)
Unit material cost	$2.50	$18.00	$35.00	$52.00
Expected service life (seawater)	5-8 years	10-15 years	25+ years	25+ years
Replacement labor (installed)	$120	$120	$120	$120
Replacements over 25 years	3-4	1-2	0	0
Total 25-year cost (per bolt)	$492-$610	$258-$378	$155	$172
Weight (per bolt)	142 g	138 g	81 g	81 g

The lifecycle cost advantage of titanium becomes overwhelming in applications where replacement requires scaffolding, confined space entry, process shutdown, or subsea intervention. In these scenarios, the installed replacement cost per fastener can reach $500-$2,000, making titanium's "fit and forget" characteristic worth multiples of the first-cost premium.

Lead Times and Minimum Order Quantities

Standard titanium fastener procurement follows predictable timelines that should be factored into project scheduling:

Item	Standard Grades (Gr.2, Gr.5)	Specialty Grades (Gr.7, Gr.12, Gr.19)
Stock items (M6-M24, standard lengths)	2-4 weeks	4-8 weeks
Made-to-order (standard geometry)	4-6 weeks	6-10 weeks
Custom design (non-standard)	8-12 weeks	10-16 weeks
Minimum order (stock)	25-100 pcs	50-200 pcs
Minimum order (custom)	100-500 pcs	200-1000 pcs
Mill cert (EN 10204 3.1)	Included	Included
Full MPIR with NACE/ASTM testing	+2-3 weeks	+2-3 weeks

Quality Assurance and Incoming Inspection

Titanium fastener quality assurance extends beyond dimensional verification. The following inspection protocol is recommended for incoming titanium fasteners in critical applications:

Dimensional verification: Thread gauge per ISO 965-1 (6g/6H tolerance class), caliper measurement of grip length, head height, and across-flats dimension. Sample size per ASTM F1470 or customer AQL requirement.

Material verification: Portable XRF (X-ray fluorescence) to confirm alloy composition matches the mill certificate. This step catches the most dangerous quality failure — wrong-alloy substitution, which accounts for an estimated 15-20% of titanium fastener field failures in non-aerospace industries where incoming inspection is less rigorous.

Mechanical testing: Tensile test per ASTM F606 on sample fasteners (destructive), hardness test per Rockwell C on bolt heads (non-destructive surrogate). For Grade 5 STA fasteners, minimum tensile strength of 160 ksi (1,103 MPa) and minimum hardness of HRC 33 are typical acceptance criteria.

Surface inspection: Visual examination for forging laps, seams, tool marks, and alpha case (the hard, brittle, oxygen-enriched surface layer that forms during hot processing and must be completely removed). Alpha case on thread roots is a well-documented cause of fatigue failure in titanium fasteners and is specifically prohibited by AMS 4928 and AMS 4967.

Sourcing Titanium Fasteners: What to Look for in a Supplier

Selecting a titanium fastener supplier requires evaluating capabilities beyond simple price quotation. The critical supplier qualification criteria include:

Raw material traceability: The supplier must demonstrate full traceability from fastener to heat lot to ingot. Titanium is produced from sponge by a limited number of primary producers worldwide, and lot traceability ensures that any metallurgical anomaly discovered in service can be traced to all affected fasteners.

Thread rolling capability: For aerospace and fatigue-loaded applications, the supplier must have thread rolling equipment rated for titanium alloys. Thread rolling Ti-6Al-4V requires approximately 3× the force of rolling 316L stainless steel, and many general-purpose fastener manufacturers lack equipment with sufficient capacity.

Heat treatment control: Solution treatment and aging (STA) of Ti-6Al-4V fasteners requires precise temperature control (±8 °C at 935 °C for solution treatment) in a vacuum or inert-atmosphere furnace. Air exposure during heat treatment produces alpha case that must be chemically milled away, adding cost and reducing dimensional control.

Quality certifications: AS9100D (aerospace), ISO 13485 (medical), ISO 9001 (industrial minimum). NADCAP accreditation for heat treatment and NDT provides additional assurance for aerospace applications.

BAOTI's titanium fastener production serves aerospace, marine, and chemical processing customers with full material traceability, in-house vacuum heat treatment, and certifications including ISO 9001 and ASTM compliance. With integrated bar-to-fastener production capability and decades of titanium metallurgy expertise, BAOTI delivers the quality assurance and technical support that critical fastener applications demand.
